QLARM Earthquake Loss Estimate Alerts
Product Overview
Earthquake loss alerts by the software QLARM (Quake Loss Assessment for Response and Mitigation). After every significant earthquake, the estimated number of fatalities and injured due to the collapse of buildings are calculated by QLARM, and uploaded to the GOBEYOND Processing Core. The data are made available in GeoJSON and WMS/WFS formats, and contain estimated numbers of fatalities and injured, based on calculated building damage, as well as locations of airports and hospitals with their likely damage state.
Technical Details
Main hazard addressed:
Earthquakes
Other related hazards:
-
Type of Product:
Loss Estimation
Data Type:
GeoJSON/WMS/WFS
Licensing:
CC BY 4.0 for the GOBEYOND project

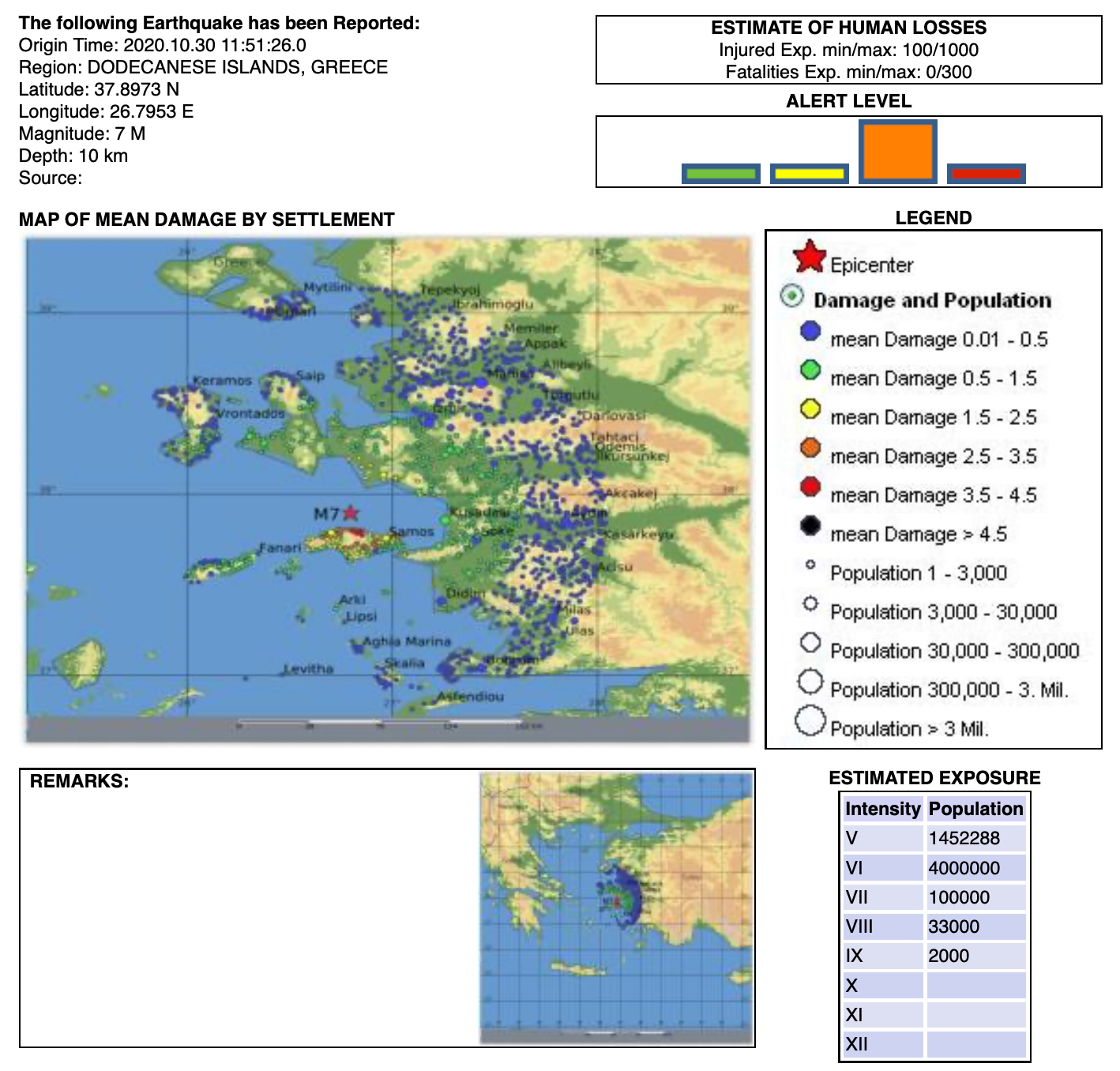

Alert message posted 117 minutes after the 30 October 2020 magnitude M=7 earthquake in Greece, for which 119 fatalities and 1043 injured were reported. The respective estimates are shown at the top right; thus, the alert was correct.

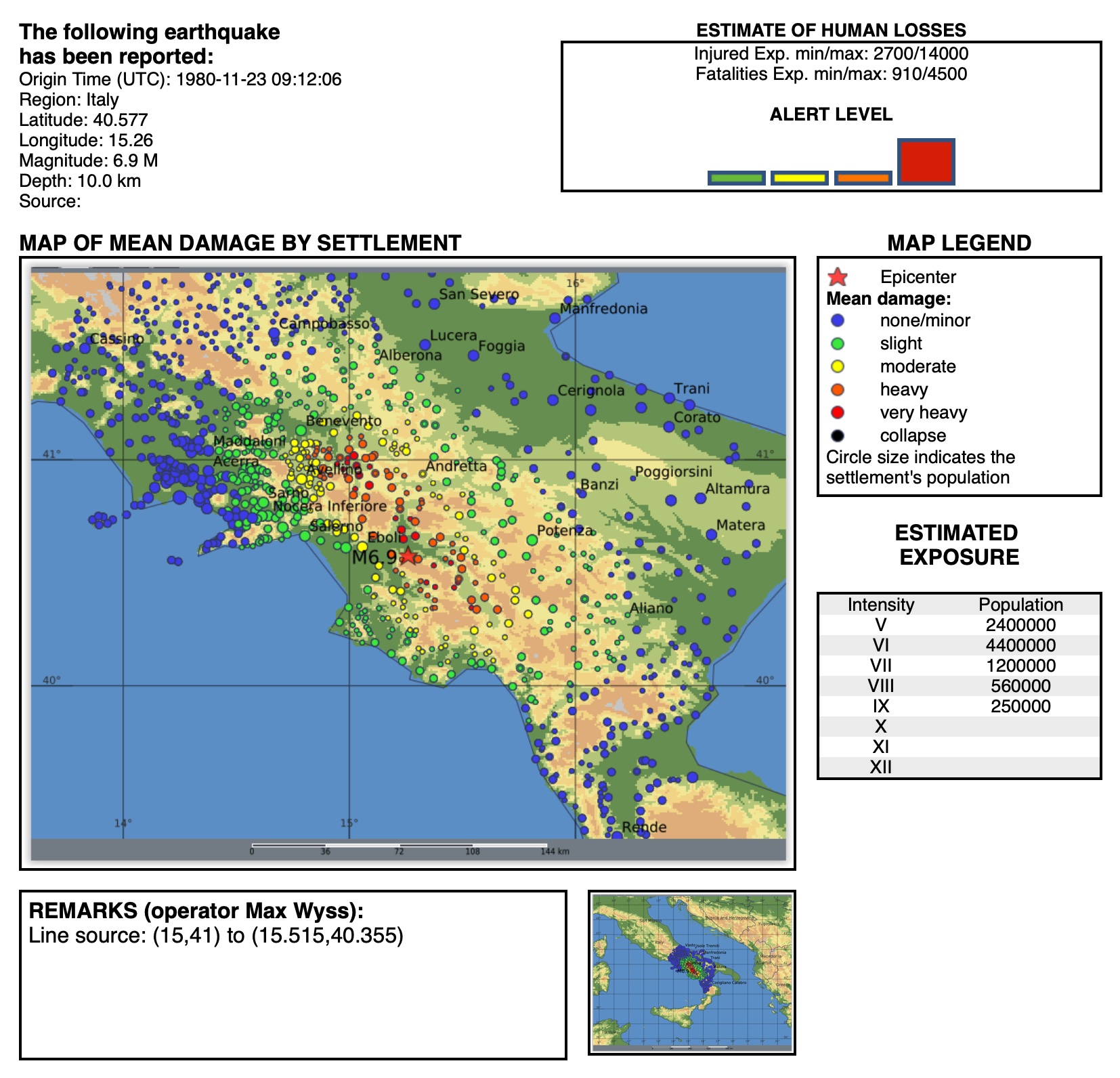

Simulation of a QLARM after the fact alert for the Irpinia M=6.9 earthquake of 23 November 1980 modelled as a line source defined by the aftershock distribution 32 minutes after the main shock.
The numbers of fatalities and injured reported were 2483 and 7700, respectively, thus the QLARM estimate is correct.
(In this simulation the population numbers were not adjusted back to 1980 as they were in the publication Wyss and Rosset, Geosciences 2020, 10, 165; doi:10.3390/geosciences10050165).
Available Implementations
Main implementation
Horizon:
Not a forecast
Spatial Resolution:
10 km
Time Resolution:
Event based
Coverage:
Global
Update Every:
2-minutes after earthquake estimate
Coverage: Array
Use Cases & Applications
The QLARM loss estimation capability has been demonstrated in a publication for 2 earthquakes each in Italy, Greece, Morocco and Spain by comparison with reported fatalities, as well as in 1481 events worldwide in near-real-time. A scenario calculation for losses due to a possible great earthquake offshore Portugal, located near the 1755 Lisbon earthquake and for several scenarios in the Azores were calculated. For Setúbal, Andalucía and the province of Chefchaouen special scenarios will be prepared including damage estimates to hospitals and airports. In cases of earthquakes in Europe, the Mediterranean or Worldwide, loss estimates will be available in near real-time.
Associated Models
- QLARMView Model
